ROYAL CABIN · ARCHITECTURAL DRAWING SET

Floor plans, elevations
and section details

Explore the complete four-sheet Royal Cabin presentation in a clear, responsive format designed for detailed viewing on any device.

Explore the plans Original PDF
SHEET 01 · EXTERIOR CONCEPT Royal Cabin exterior rendering with a planted green roof and arched glazed entrance
04Complete drawing sheets
PLANTechnical and furnished views
1:50Elevations and section scale

THE COMPLETE DRAWING SET

Royal Cabin in detail

Every original sheet is reproduced in full. Select any drawing to open the high-resolution version and inspect its dimensions and annotations.

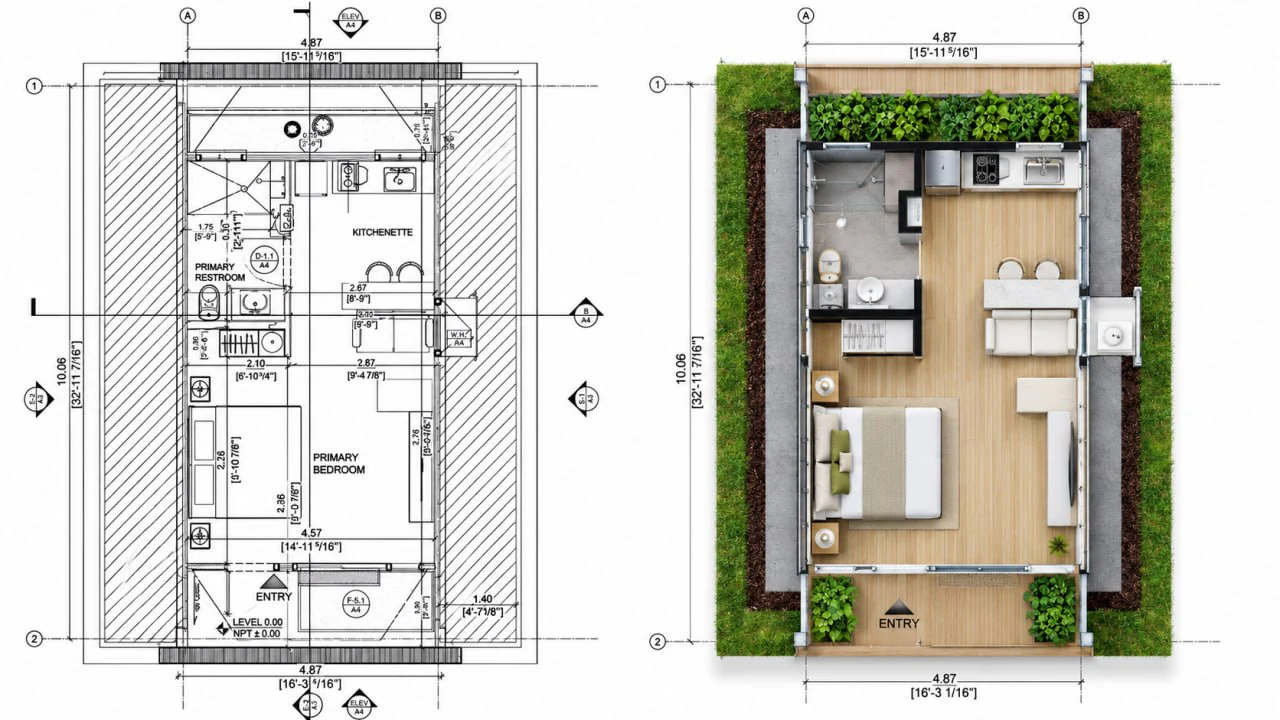

02 Main floor planTechnical drawing and furnished layout VIEW FULL RESOLUTION ↗
Royal Cabin technical floor plan and furnished top-down layout

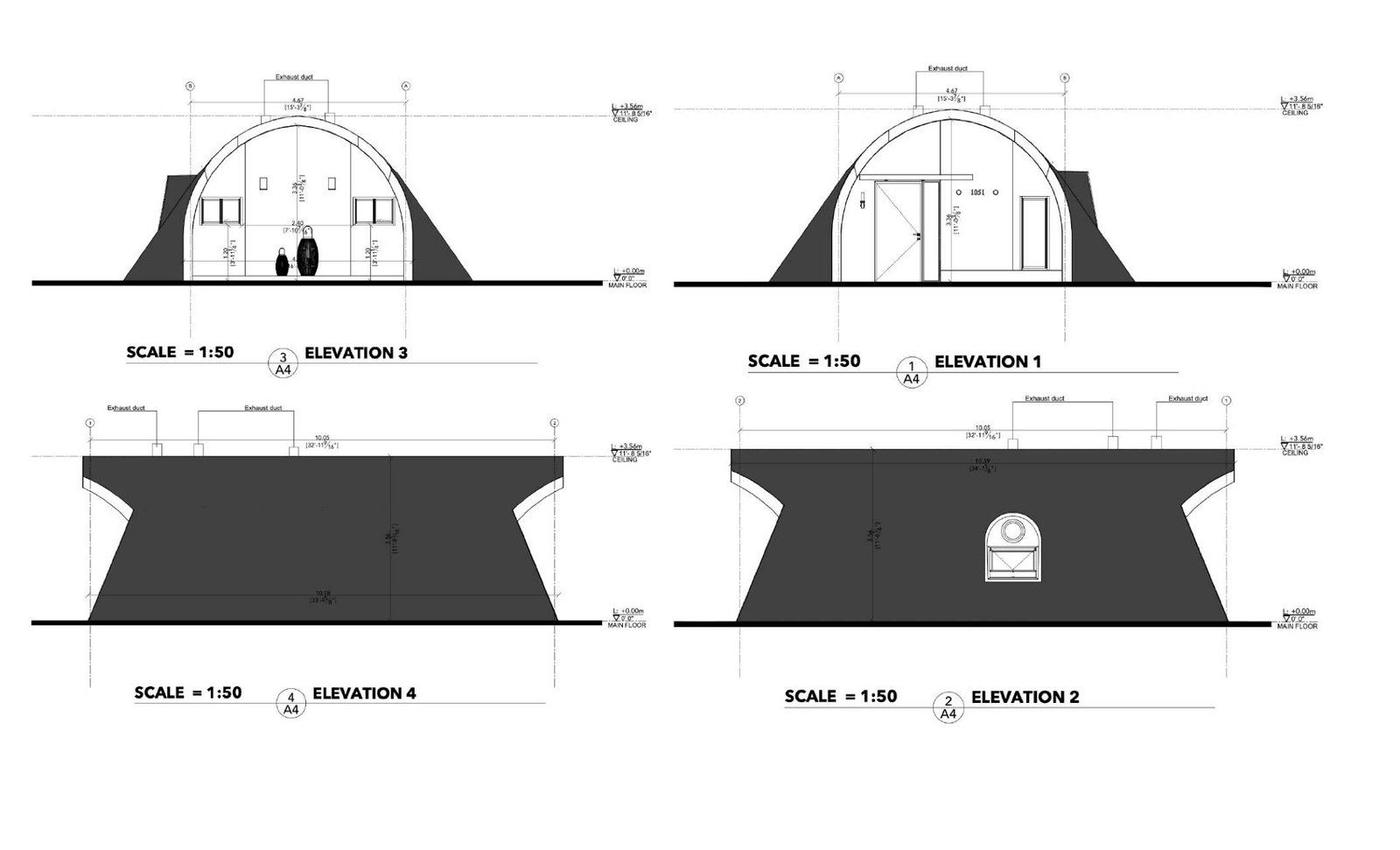

03 Architectural elevationsElevations 1–4 · Scale 1:50 VIEW FULL RESOLUTION ↗
Royal Cabin architectural elevations 1 through 4

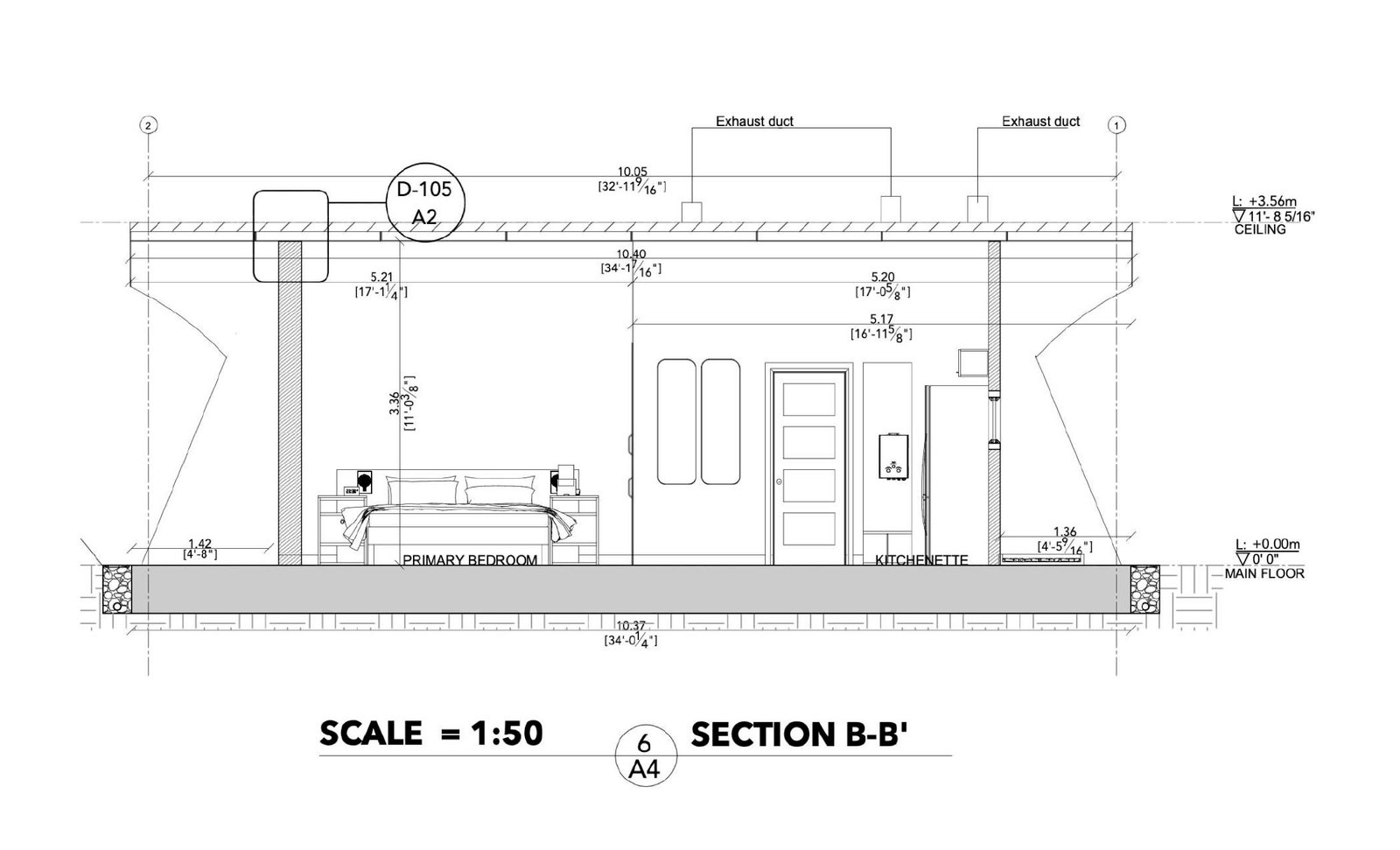

04 Building section B–B′Interior relationship and structural profile · Scale 1:50 VIEW FULL RESOLUTION ↗
Royal Cabin architectural section B-B

Dimensions and annotations are reproduced from the original drawing set. Open each sheet at full resolution for detailed review.
